FireFox 1 The hydropneumatique blind rivet nut tool for M3-M6 – stroke or setting force controlled Advantages
- Stroke- or setting-force adjustment possible
- Maximum stroke clearly identified by blue ring on stroke scale
- Fast and precise setting force adjustment with colour-coded setting ring

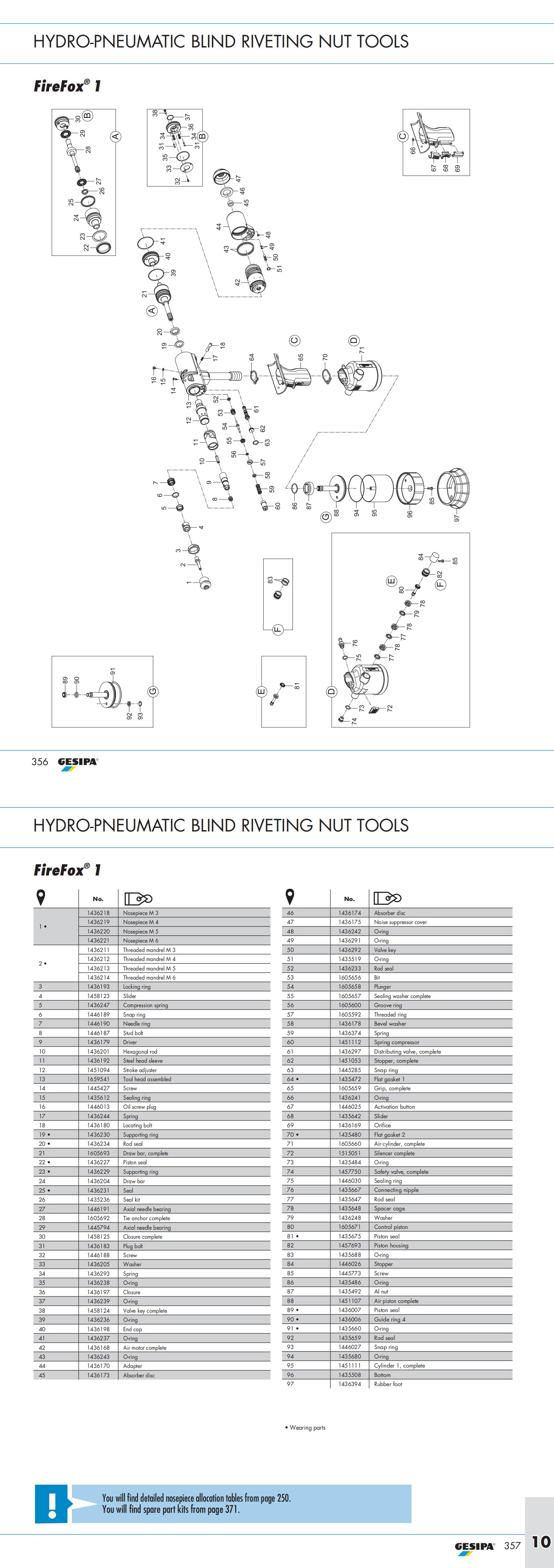

- New stroke scale quick and easy to set even under poor light conditions Working range Blind rivet nuts from M3 up to M6 of all materials, except M6 stainless steel. Technical data Weight: 2.2 kg Maximum stroke: approx. 7.5 mm Adjustable traction force: up to approx. 12 kN at 6 bar Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: approx. 1-2 ltr.per setting process (depending on nutsize) Scope of delivery Threaded mandrel and nosepiece M6 (in working position) Threaded mandrel and nosepiece M3, M4 and M5 (in magazine) 2x double open ended wrenches SW 24/27 1x hexagon screw driver SW 3 1x oil refill bottle with hydraulic oil 100 ml 1x oil refill can Rubber foot Quick setting guide Colour code card Operating instructions with spare parts list
