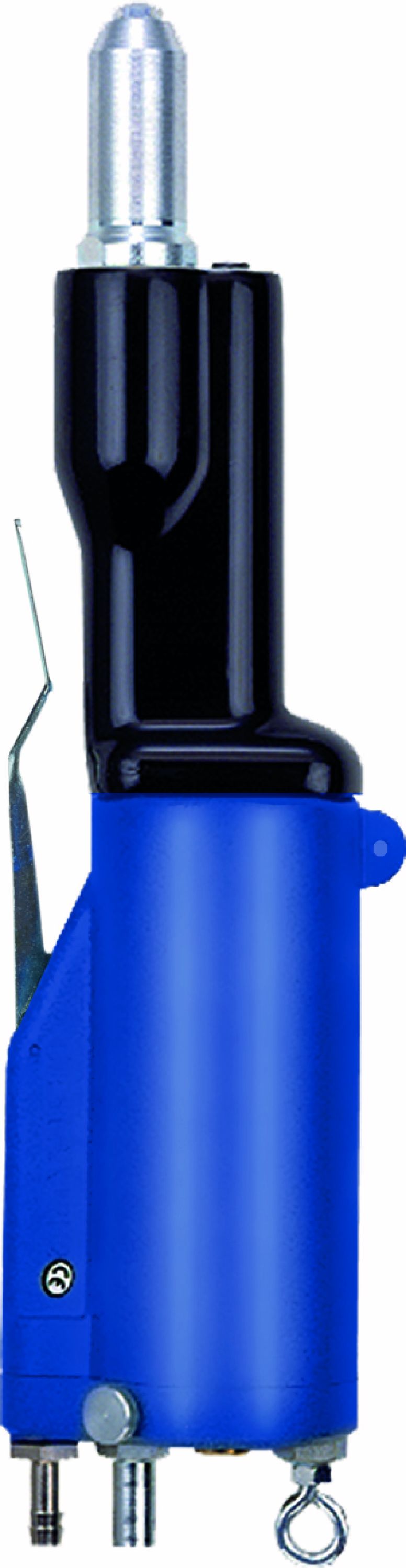

Hydro-pneumatic blind rivet tool PH AXIAL Advantages
- Pneumatic cylinder and hydraulic head with jaw mechanism arranged axially behind each other: simple and easy handling when used vertically (e.g. desktop assembly points)
- Integrated blind rivet suction and rivet mandrel ejection system: does not need to be retrofitted, secure disposal of the spent mandrels in a central container via a hose
- Hydraulic head in aluminium with wear-proof cylinder surface
- Pneumatic cylinder made of die cast aluminium
- Working piston made of hardened and hard chromium plated steel macke the device easy to handle and wear-proof
- Compact seals are wear-proof with large scraper effect, long service life
- Fast venting system: faster return; high work sequence
- Low-noise pneumatic switching
- Simple valve structure: interruption free Scope of delivery Nosepieces: 16/24, 16/27, 16/29 and 16/32 Jaw pusher with reducing tube no.125 for 4 mm Ø blind rivets in alu and copper Ejection tube with socket for spent mandrels Maintenance instructions and spare parts list Technical data Weight: 1.8 kg Operating air pressure: 5
- 7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: 1.2-1.8 ltr. per rivet (0.3 ltr. compr. air) Traction power: 8,800 N at 6 bar Stroke: 15 mm Working range Blind rivets from 4 up to 5 mm Ø steel and 2.4 up to 3.2 mm Ø with small jaw assemly.
