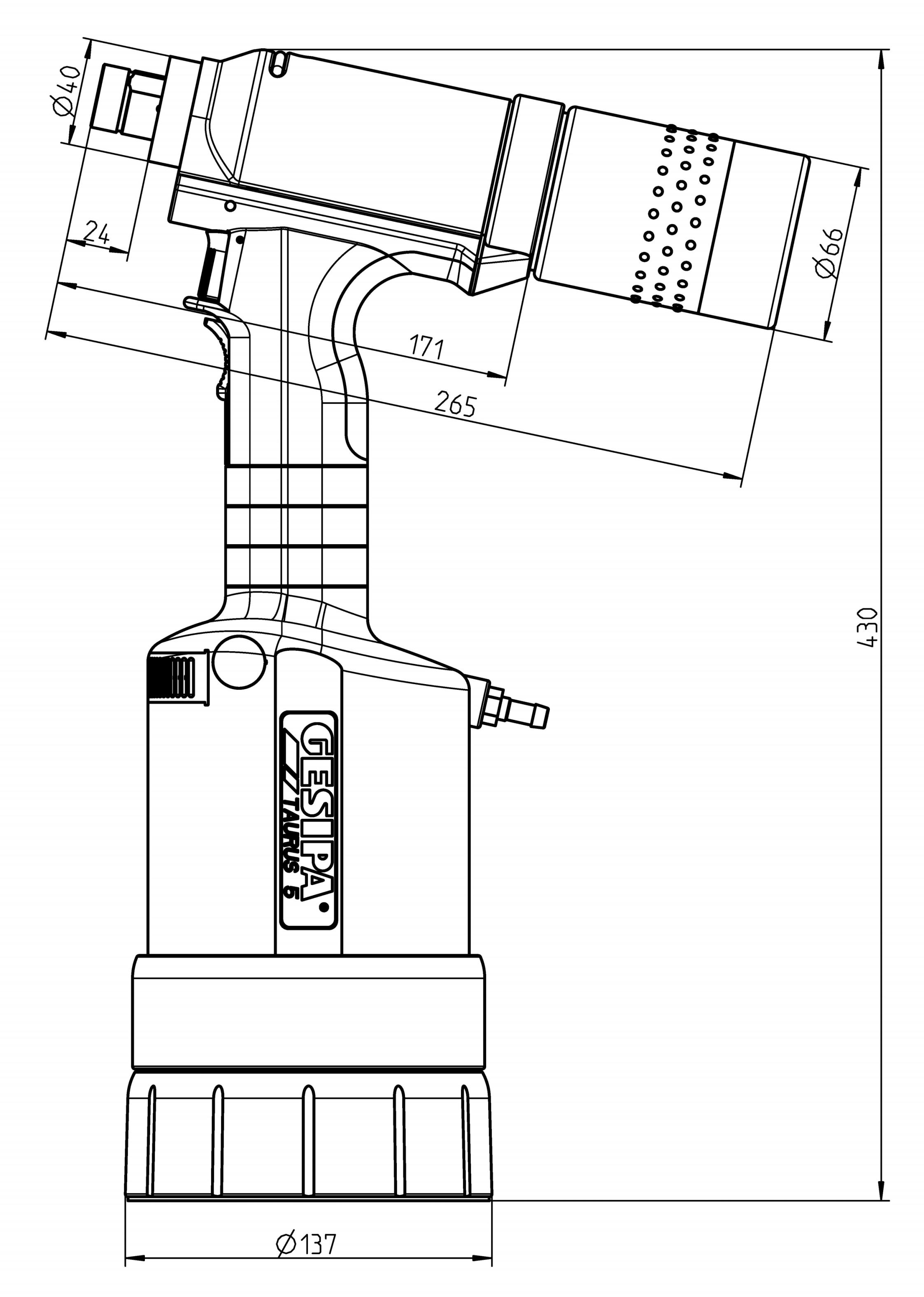

TAURUS 5 The TAURUS series – unique modular principle. Minimal spare parts stocks, easy maintenance. WORKING RANGE Blind rivets above 6.4 mm Ø all materials and lockbolts up to10 mm Ø with corresponding pulling heads TECHNICAL DATA Weight: 3.4 kg Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: approx. 6.9 ltr. per rivet Traction power: 42,000 N at 7 bar Stroke: 17 mm SCOPE OF DELIVERY 1 hydraulic oil bottle 100 ml 1 oil refill can Operating instructions 01 MODULAR PRINCIPLES
- Widest possible parts commonality – low spare part stocks required and simple maintenance
- Flexible adaption to new applications 02 POWER
- High setting forces combined with low weight
- Fast work cycle
- Optimised stroke for the entire series 03 PATENTED HANDLE MECHANISM
- With forcibly actuated jaws by pneumatic pressing
- Safe, non-slip gripping of the rivet mandrel
- Just one model of jaws for all tools
- Very long service lives 04 EFFICIENCY
- Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent mandrels use the same air
- Air suction needed only for vertical downwards riveting.
- Can be permanently switched-off if not needed. 05 WORK COMFORT / SAFETY
- Rubberised, moulded grip
- Balanced center of gravity
- Low-vibration and soundproof
- Little activation force required
- Spent mandrel container with swivelling air deflector
- Overpressure valve for prevention of overload
- Integrated protection feature prevents the ejection of spent
- mandrels while the spent mandrel container is removed
