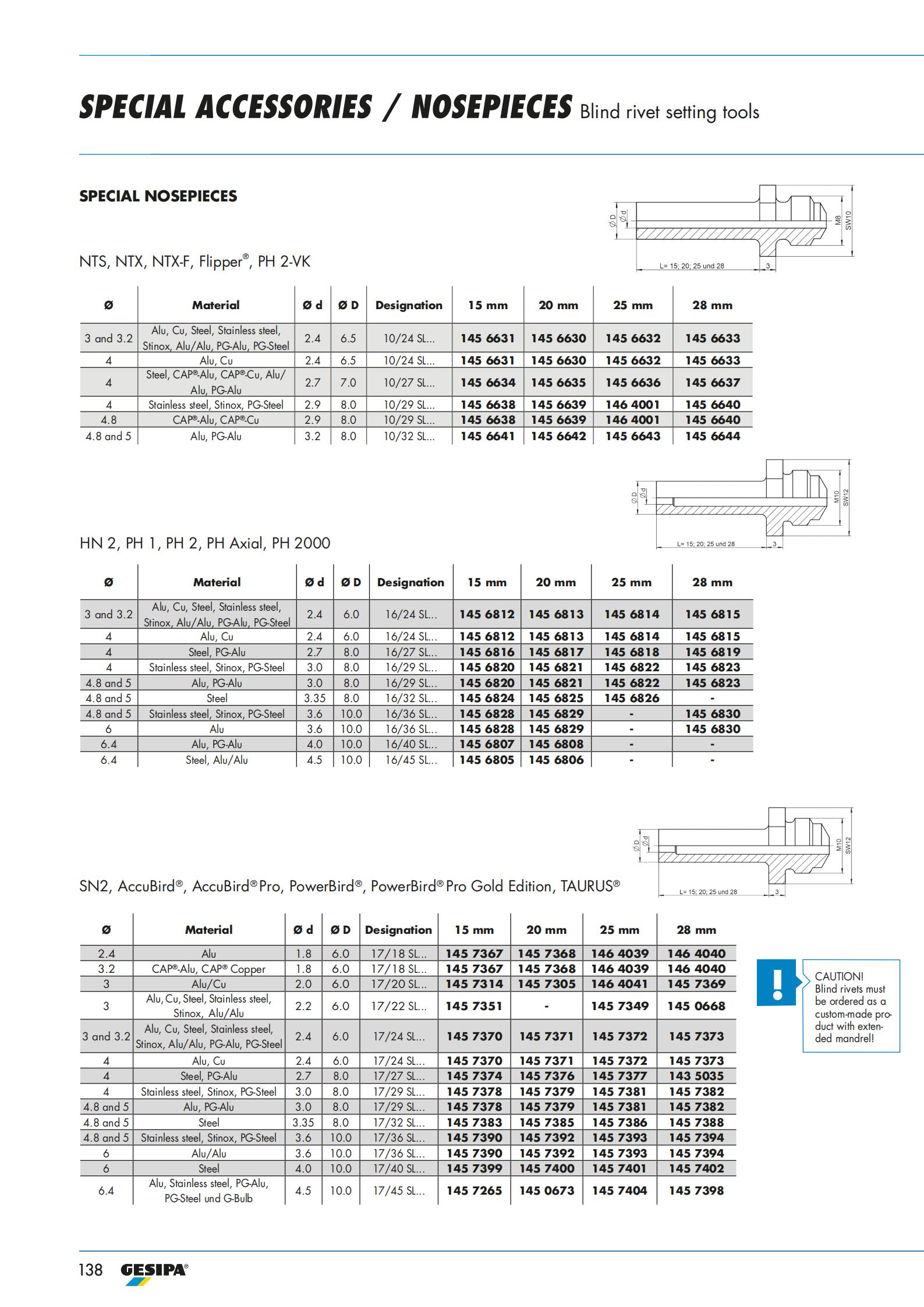

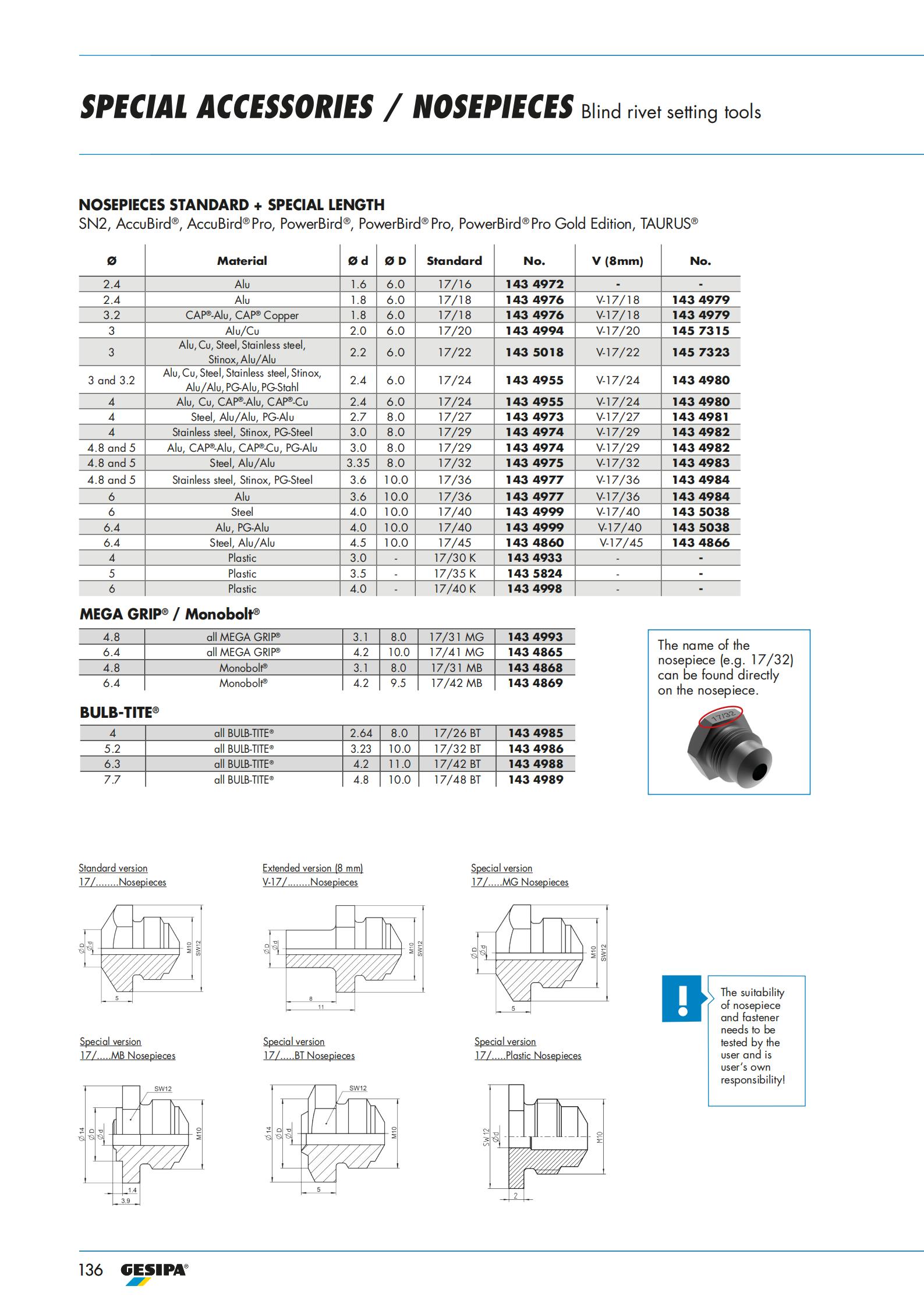

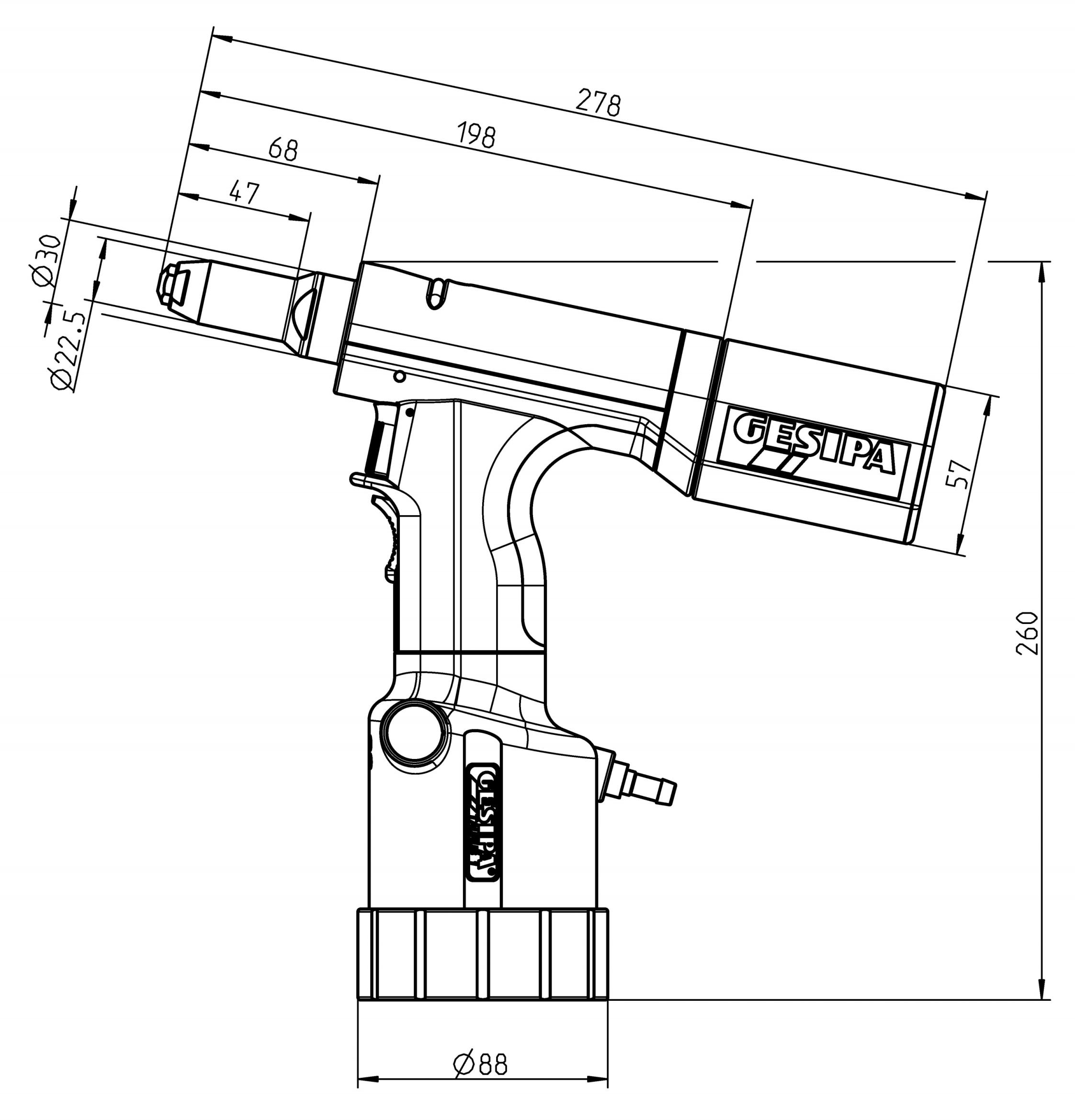

TAURUS 1 The TAURUS series – unique modular principle. Minimal spare parts stocks, easy maintenance. WORKING RANGE Sets blind rivets up to 3.2 mm Ø all materials and up to 4 mm Ø alu/steel (max. mandrel Ø 2.5 mm) TECHNICAL DATA Weight: 1.3 kg Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: approx. 1.0 ltr. per rivet Traction power: 5,500 N at 6 bar Stroke: 15 mm SCOPE OF DELIVERY Nosepieces:17/18, 17/20 and 17/22, maintenance wrench SW12/14, SW14/17, 1 hydraulic oil bottle 100 ml, 1 oil refill can, Operating instructions 01 MODULAR PRINCIPLES
- Widest possible parts commonality – low spare part stocks required and simple maintenance
- Flexible adaption to new applications 02 POWER
- High setting forces combined with low weight
- Fast work cycle
- Optimised stroke for the entire series 03 PATENTED HANDLE MECHANISM
- With forcibly actuated jaws by pneumatic pressing
- Safe, non-slip gripping of the rivet mandrel
- Just one model of jaws for all tools
- Very long service lives 04 EFFICIENCY
- Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent mandrels use the same air
- Air suction needed only for vertical downwards riveting.
- Can be permanently switched-off if not needed. 05 WORK COMFORT / SAFETY
- Rubberised, moulded grip
- Balanced center of gravity
- Low-vibration and soundproof
- Little activation force required
- Spent mandrel container with swivelling air deflector
- Overpressure valve for prevention of overload
- Integrated protection feature prevents the ejection of spent
- mandrels while the spent mandrel container is removed
