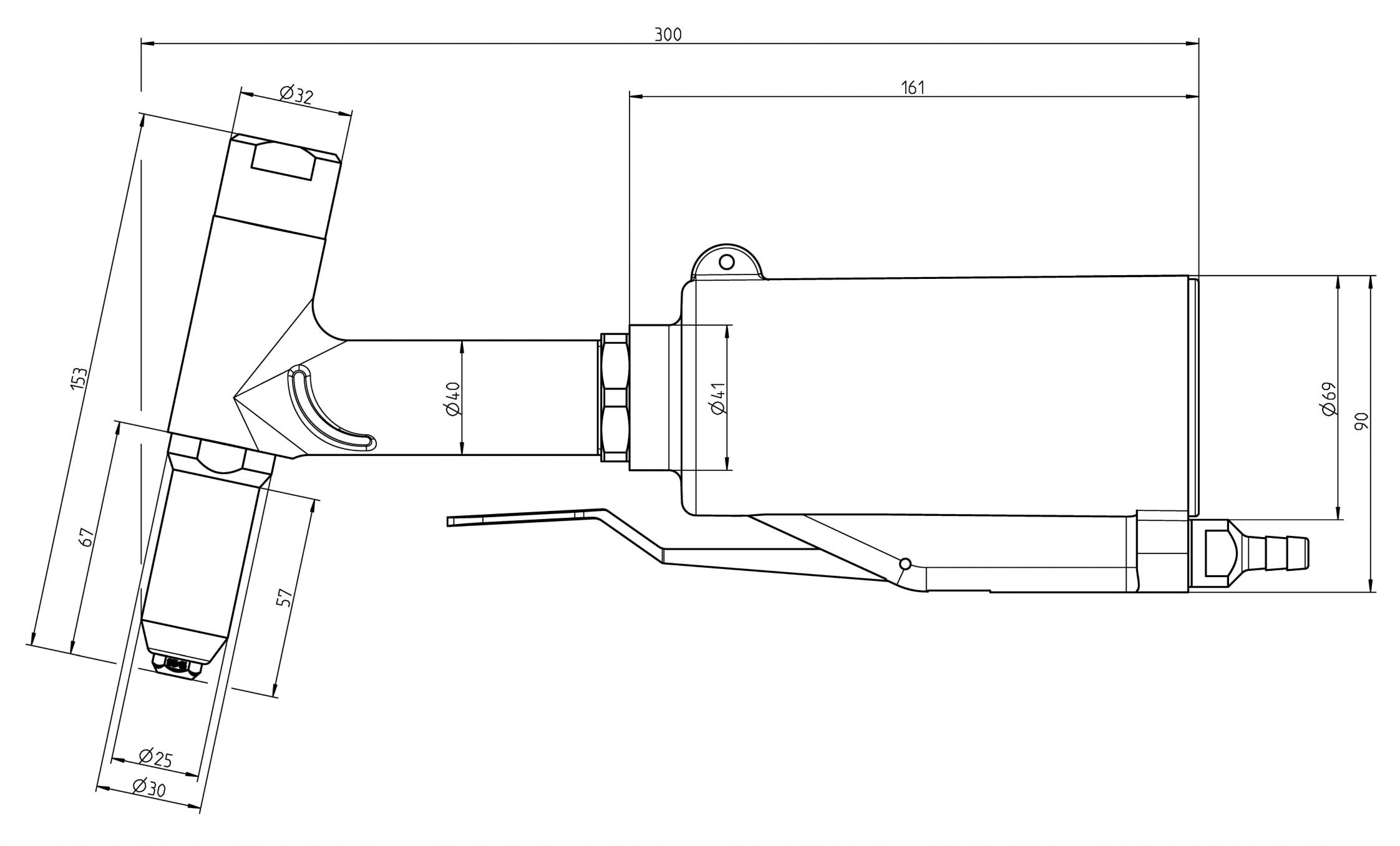

PH 2
- Hydro-pneumatic blind rivet tool Advantages
- Hydraulic head made of aluminium with wear-proof cylinder surface
- Pneumatic cylinder made of die cast aluminium
- Pistons: Steel hardened and chrome-plated – smooth operation and wear-proof
- Compact seals are wear-proof for a long service life
- Fast venting valve for fast return and high working sequence
- Low-noise pneumatic switching
- Simple, low-interruption valve design
- Hydraulic head can be adjusted by 360°
- Favourable centre of gravity and handle design for fatigue-free handling Technical data Weight: 1.3 kg Operating air pressure: 5
- 7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: 1.2
- 1.8 ltr. per rivet (0.3 ltr. compr. air) Traction power: 8,800 N at 6 bar Stroke: 15 mm Working range Blind rivets up to 5 mm Ø all materials and blind rivets with 2.4 mm up to 3.2mm Ø with small jaws (page 130). Not suitable for stainless steel CAP® blind rivets. Scope of delivery Nosepieces: 16/24, 16/27, 16/29, 16/32 and 16/36 1 set of jaws, 1 spent mandrel bottle, 1 wrench each of MSU and MSZ, Maintenance instructions
