Lever riveting tool
- HN2-BT Advantages
- Pliers casing in high-quality die cast aluminium, its sturdy design protects it against soiling
- Link pin on anti-twist bearings and with inner axial protection, wear-proof and smooth running
- Tooth segment transmission with favourable lever arm arrangement reduces the force required and dampens the tear-off effect
- Fixed casing lever and ergonomic handle design: simple and easy handling
- Actuation lever: repeated re-engagement very easy, even on workpiece; highly beneficial for oversized blind rivets
- Gear rack: supported on a brass plate; smooth running

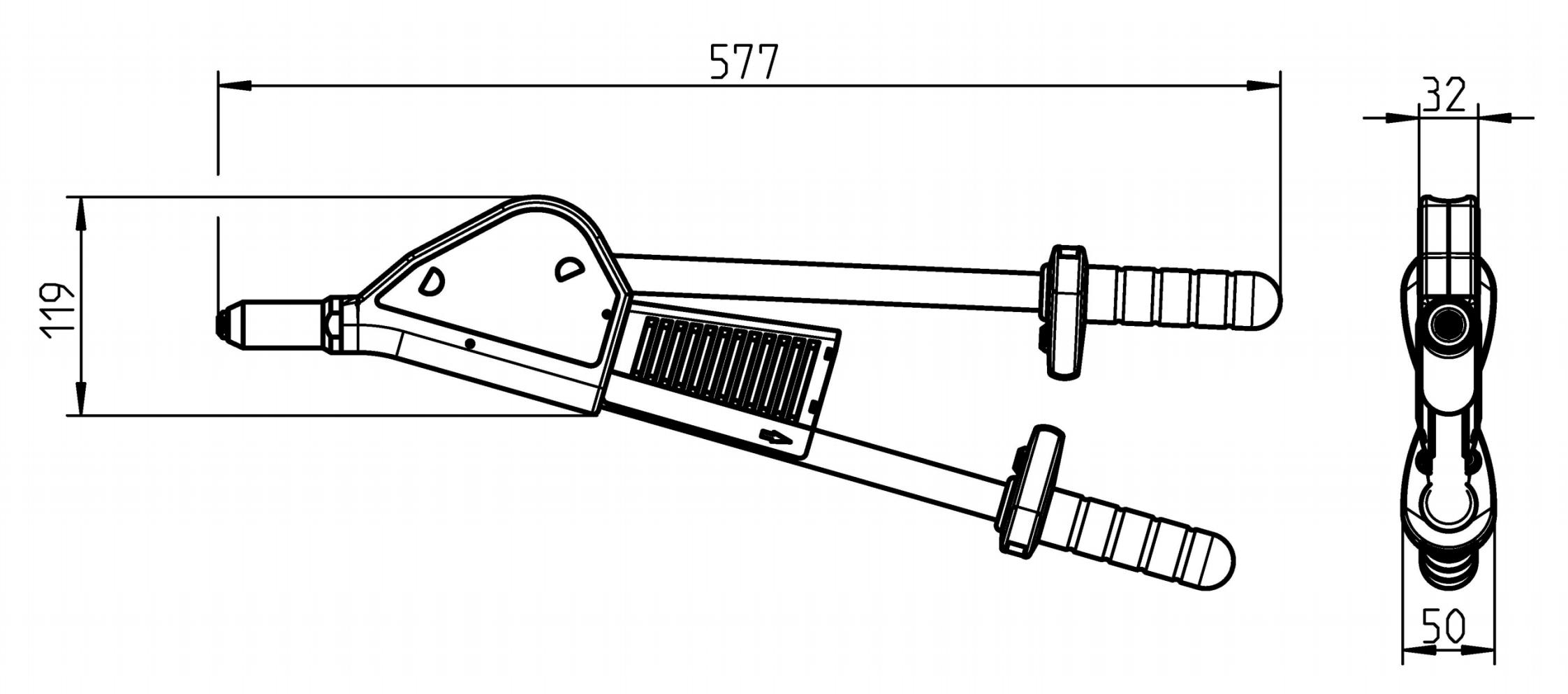

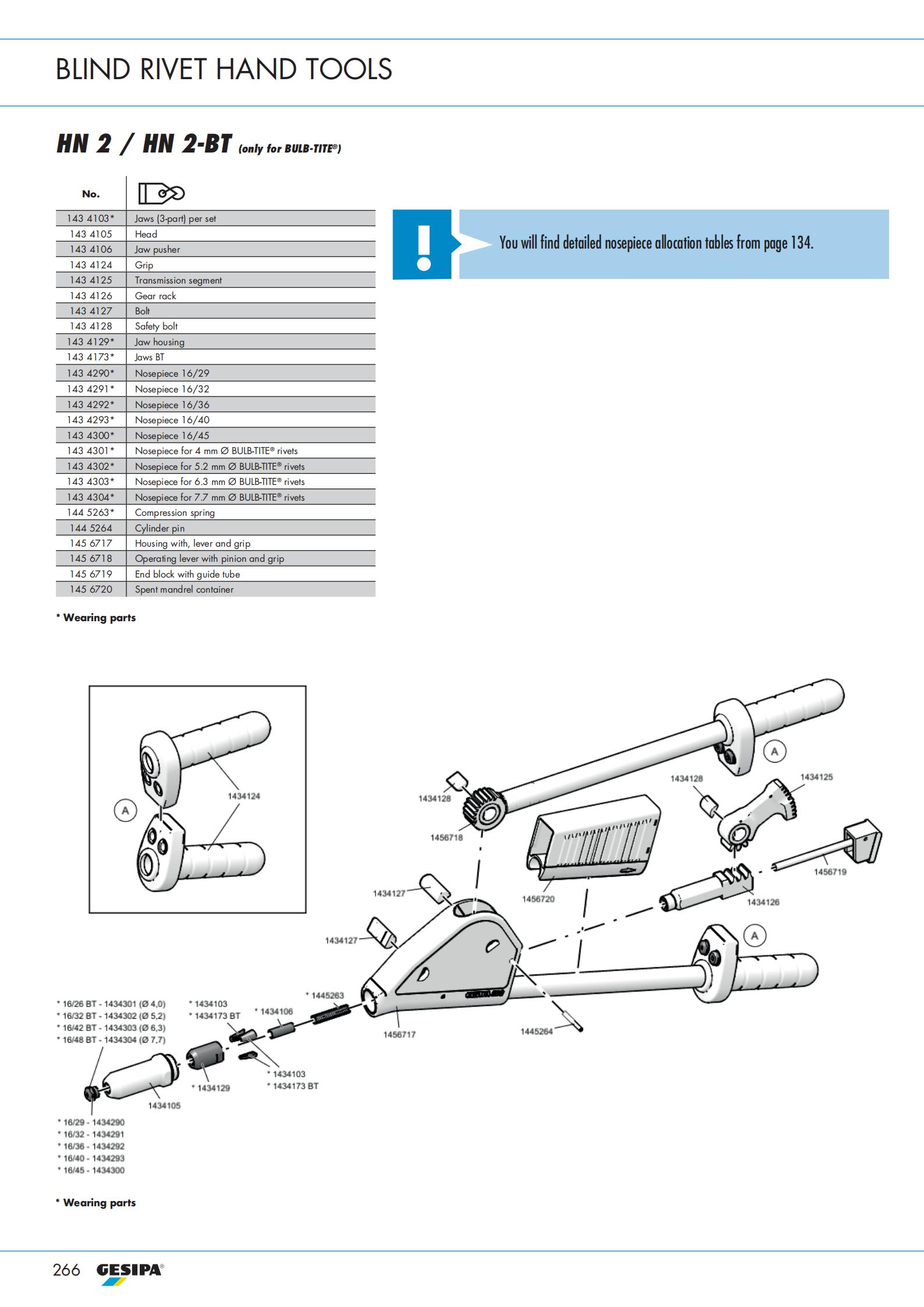

- Rivet mandrel collection tank: swivel-mounted to the casing; can be emptied easily and safely Technical Data Weight: 1.85 kg Total length: 570 mm Stroke: 10 mm Working range Blind rivets up to 7.7 mm Ø all materials (max. mandrel Ø 4.5 mm) Scope of delivery Nosepieces: 16/26 BT, 16/32 BT, 16/42 BT and 16/48 BT Spent mandrel container Maintenance instructions with spare parts list
