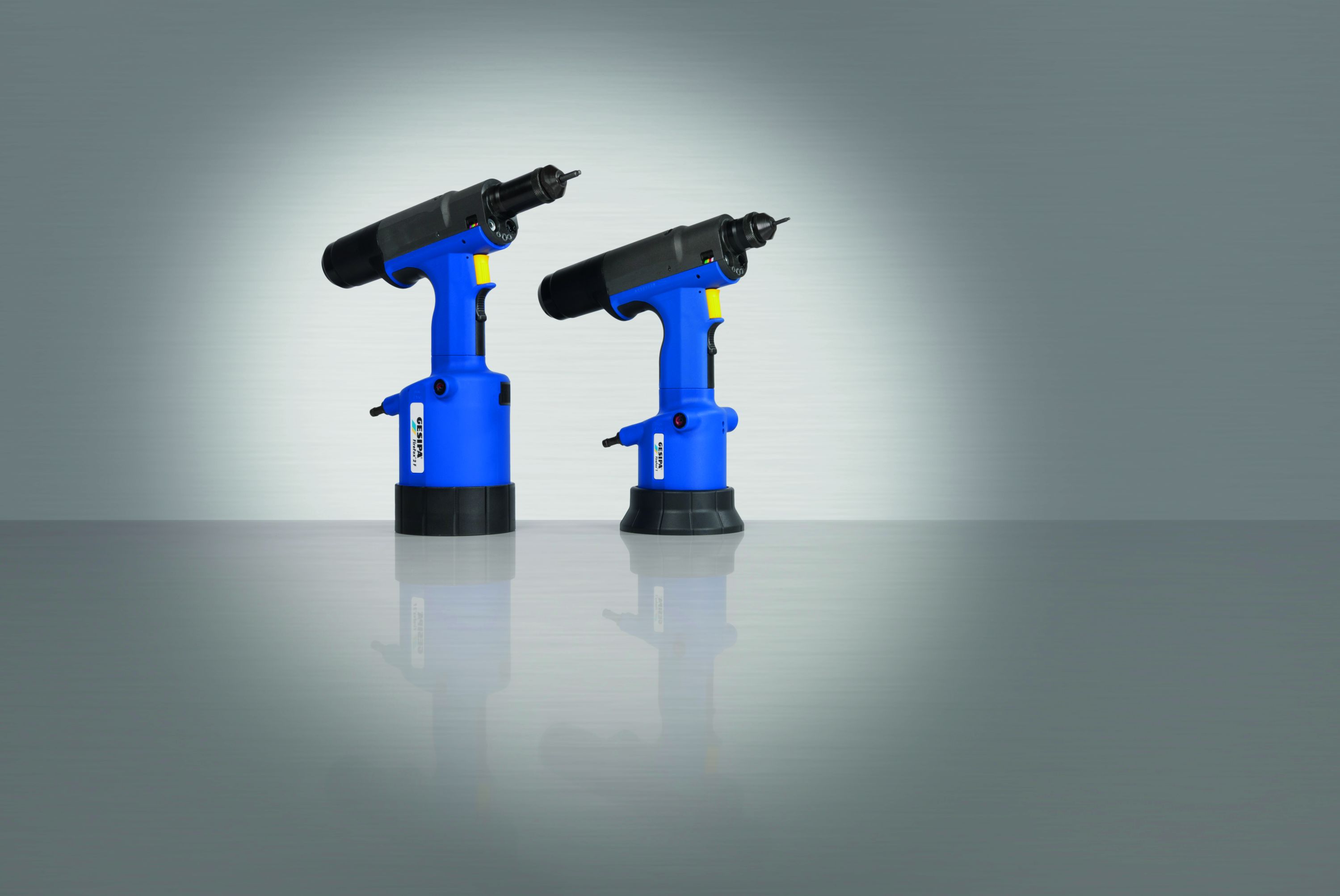

FIREFOX 2 F The hydro-pneumatique blind rivet nut tool with pure setting force adjustment Advantages
- With pure setting force adjustment
- Fast and precise setting force adjustment with colour-coded setting ring
- Optimum protection of material to be joined and blind rivet nut thread
- Secure anchoring of the blind rivet nut

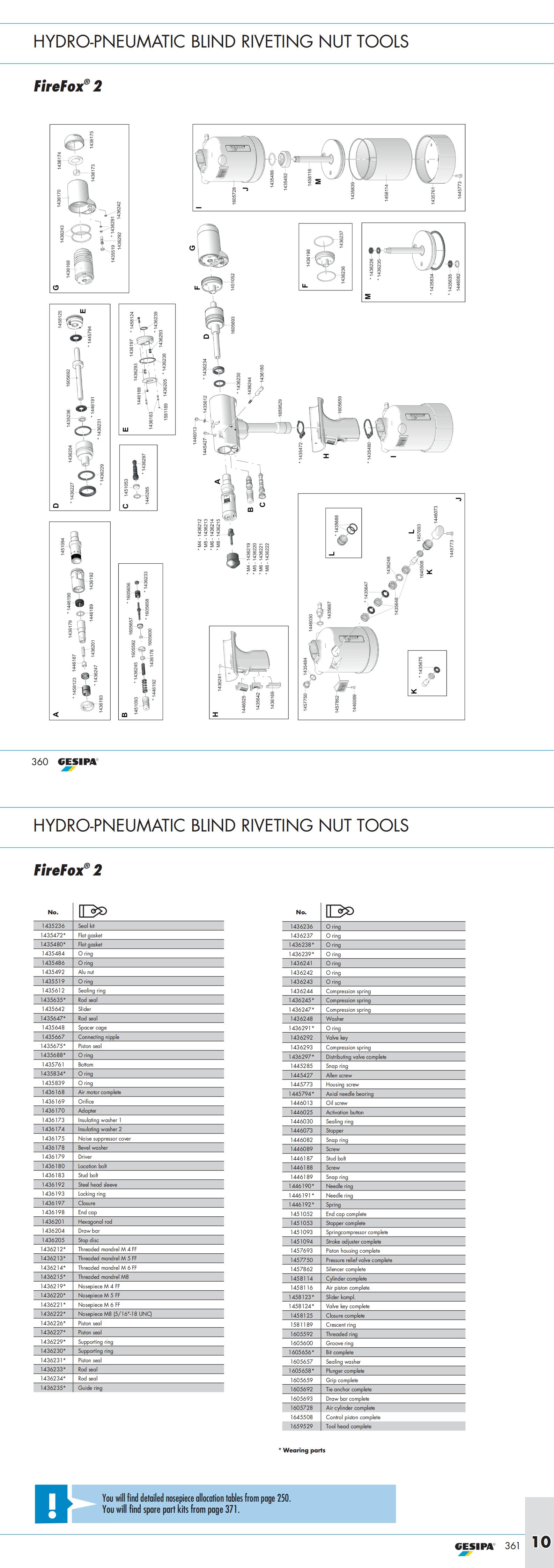

- High process reliability Working range Sets blind rivet nuts from M4 to M10 in all materials as well as M12 in aluminium and steel. Technical data Weight: 2.4 kg Adjustable stroke,max: 10mm Adjustable traction force, max: 22 kN at 6 bar Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: approx. 2 to 4 ltr. per rivet nut (depending on nut size) Scope of delivery Threaded mandrel and nosepiece M6 (in working position) Threaded mandrel and nosepiece M4, M5 and M8 (in magazine) 2x double open ended wrenches SW 24/27 1x hexagon screw driver SW 3 1x oil refill bottle with hydraulic oil 100 ml 1x oil refill can Quick setting guide Colour code card Operating instructions with spare parts list
