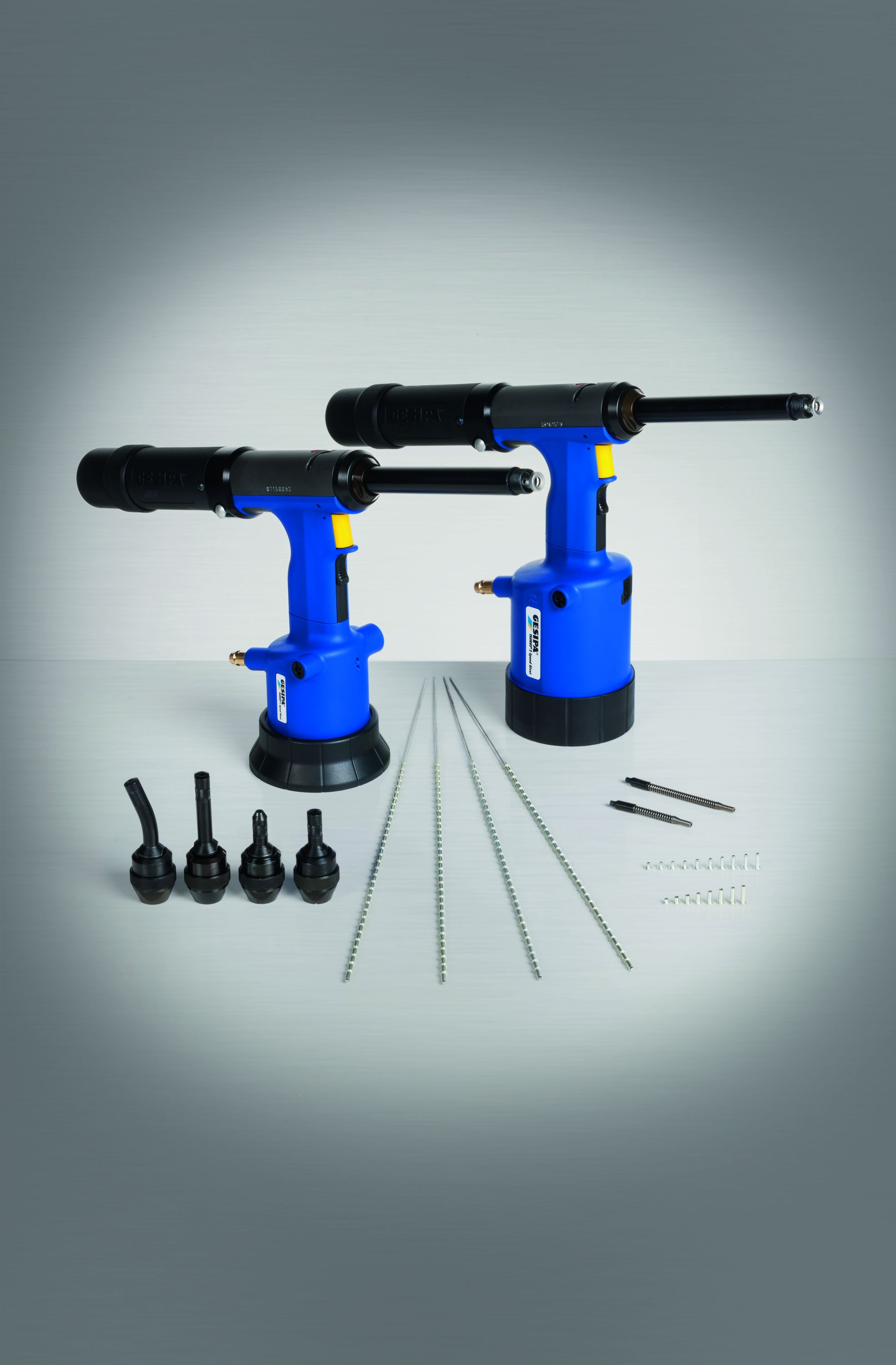

TAURUS Speed Rivet Axial eco 2 The hydro-pneumatic-magazine tool with quick setting process and fast rates! Advantages
- Also perfectly designed for fixed installation in production lines or semi-automatic workstations
- Very practical for processing blind rivets in positions that require a vertical rivet setting process
- Can be suspended on a balancer
- Quick setting process, fast rates
- Safe working through disposable mandrel and optional automatic switchoff
- Ergonomic handling for fatigue-free work
- Light and compact design
- Modular construction based on the TAURUS® design
- Softgrip
- Tool-free conversion (spreader nosepiece and spring) Technical data Traction power: 6,500 N at 6 bar Stroke: 30 mm Operating pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Weight: 2.0 kg Working range The rivet setting tool is designed for setting standard speed rivets from 2.4
- 6.4 mm Ø of all materials. (max. mandrel Ø 2.7 mm) Scope of delivery 1 hydraulic oil bottle 100 ml 1 oil refill can 1 oil press Operating instructions Slide lock (max. mandrel Ø 2.7 mm)
