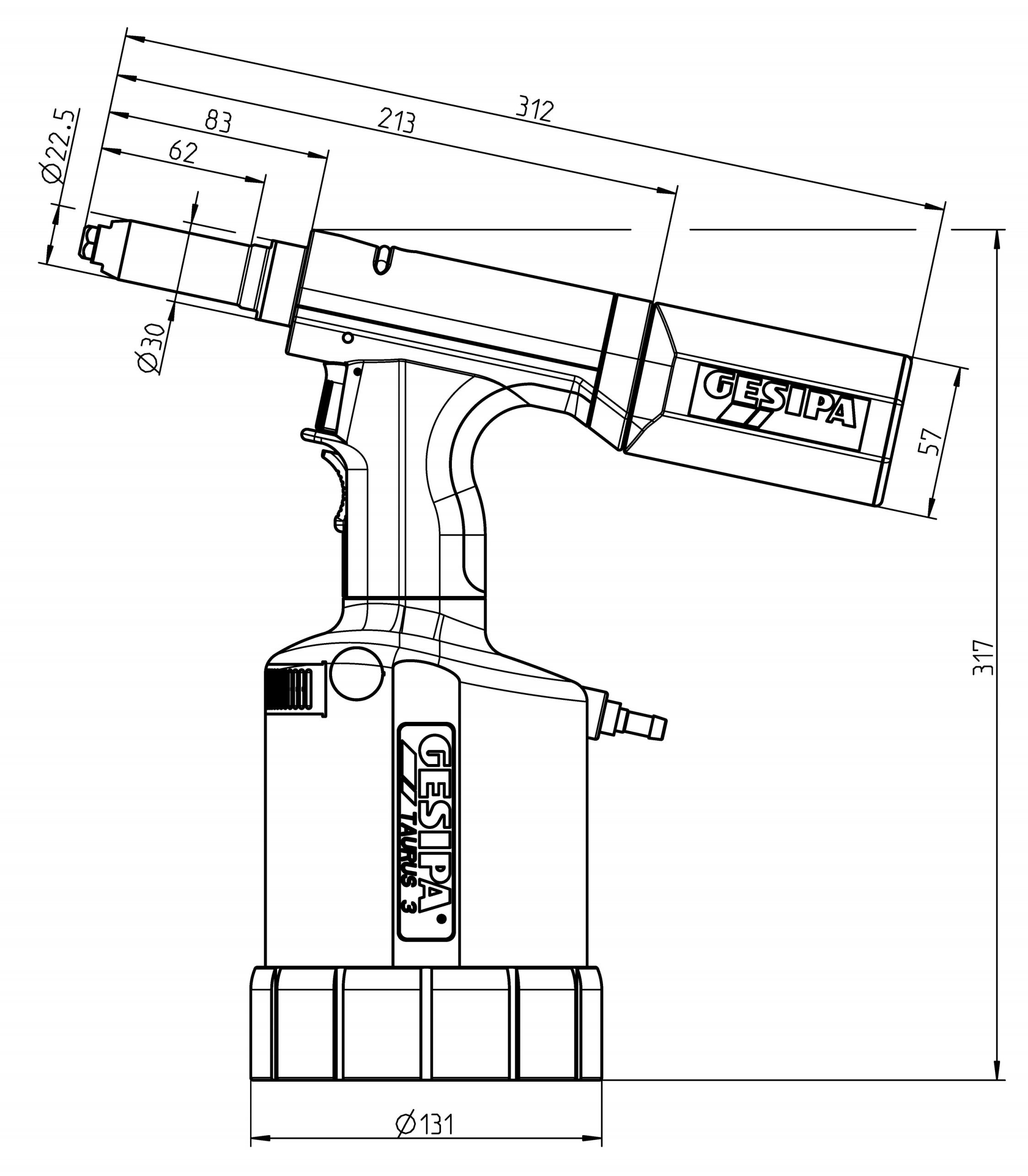

TAURUS 3 The TAURUS series – unique modular principle. Minimal spare parts stocks, easy maintenance. WORKING RANGE Sets blind rivets up to 6.4 mm Ø all materials (max. mandrel Ø 4.3 mm) TECHNICAL DATA Weight: 1.9 kg Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: approx. 4.8 ltr. per rivet Traction power: 18,000 N at 6 bar Stroke: 25 mm SCOPE OF DELIVERY Nosepieces:17/36, 17/40 and 17/45, maintenance wrench SW12/14, SW14/17, 1 hydraulic oil bottle 100 ml, 1 oil refill can, Operating instructions 01 MODULAR PRINCIPLES
- Widest possible parts commonality – low spare part stocks required and simple maintenance
- Flexible adaption to new applications 02 POWER
- High setting forces combined with low weight
- Fast work cycle
- Optimised stroke for the entire series 03 PATENTED HANDLE MECHANISM
- With forcibly actuated jaws by pneumatic pressing
- Safe, non-slip gripping of the rivet mandrel
- Just one model of jaws for all tools
- Very long service lives 04 EFFICIENCY
- Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent mandrels use the same air
- Air suction needed only for vertical downwards riveting.
- Can be permanently switched-off if not needed. 05 WORK COMFORT / SAFETY
- Rubberised, moulded grip
- Balanced center of gravity
- Low-vibration and soundproof
- Little activation force required
- Spent mandrel container with swivelling air deflector
- Overpressure valve for prevention of overload
- Integrated protection feature prevents the ejection of spent
- mandrels while the spent mandrel container is removed TAURUS 1-4 WITH SPRING-LOADED TRIGGER SYSTEM The spring-loaded trigger system ensures that the components which are to be riveted are reliably placed one on top of the other gapfree prior to the riveting process. Furthermore, this ensures that the blind rivet reaches its end position in the bore prior to the setting process and that the setting head is in the right position. The pressure force can be variably applied depending on the application. The spring-loaded trigger system cannot be retrofitted but is supplied completely attached.
